PCB Design

Technical Capabilities

No. of layers: 18
Materials : Isola, Iteq, Shengyi, Arlon, Ventec, Rogers
Board sizes: 575mm X 762mm
Board Thickness: 0.6mm – 10mm
Mask Color: Green, Blue, Red, Black, etc.
Legend Color: White, Red, Blue, Yellow, etc.
Surface Finishing: OSP, HASL LF, ENIG, HARD GOLD, & SOFT GOLD
Min. Trace Width: 0.1mm
Min. Hole size: 0.1mm
Min. Gap spacing: 0.1mm

pcb-design-logos
More Info
feed-through-card
Feed Through Card
hard-test-board

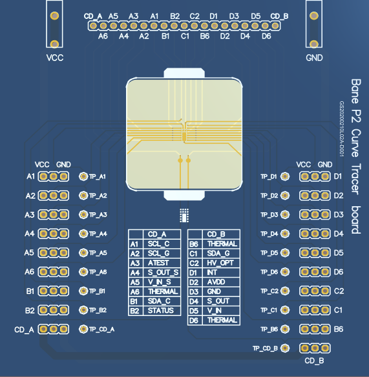

Hand Test Board
mounting-card

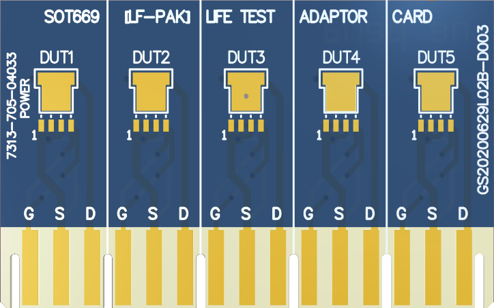

Mounting Card
program-card

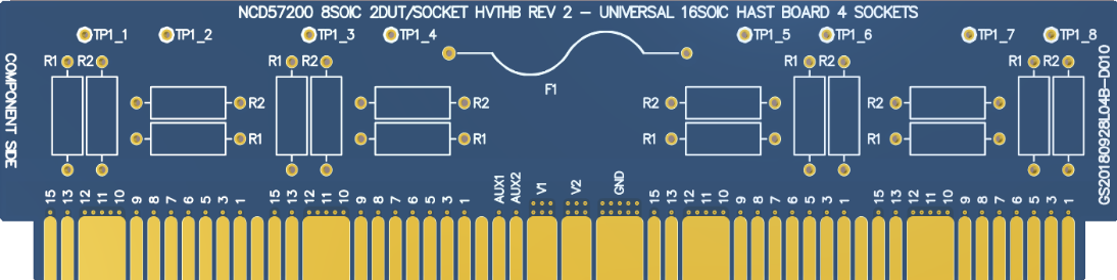

Program Card
quick-turn-pcb

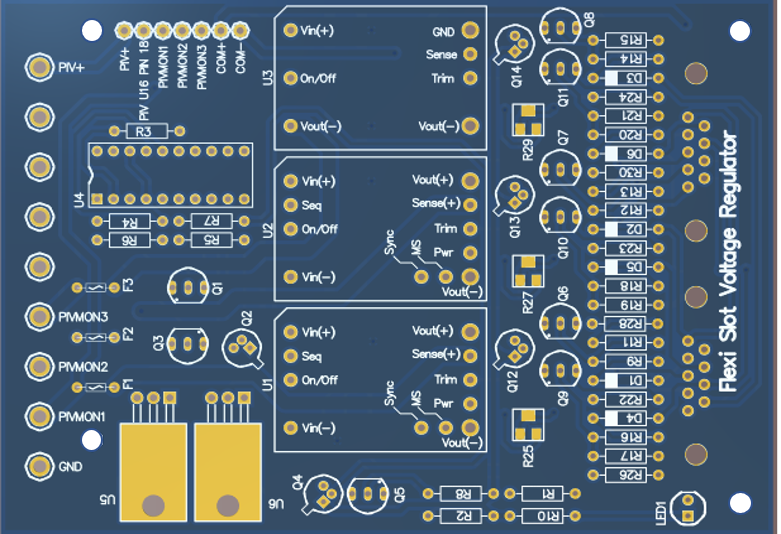

Quick Turn PCB
adapter-card

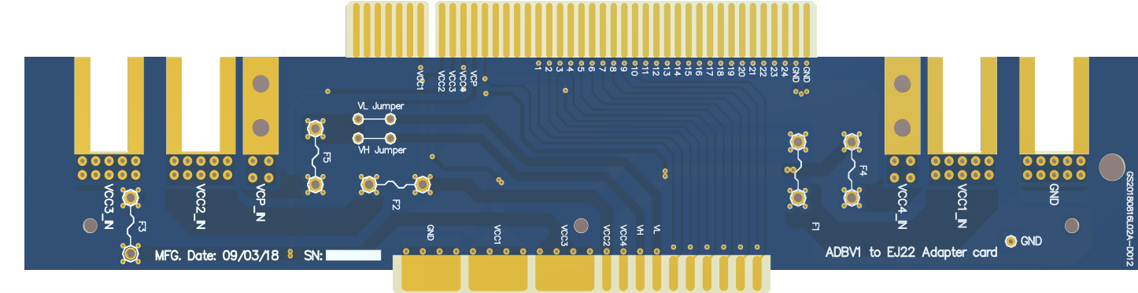

Adapter Card
backplane-board

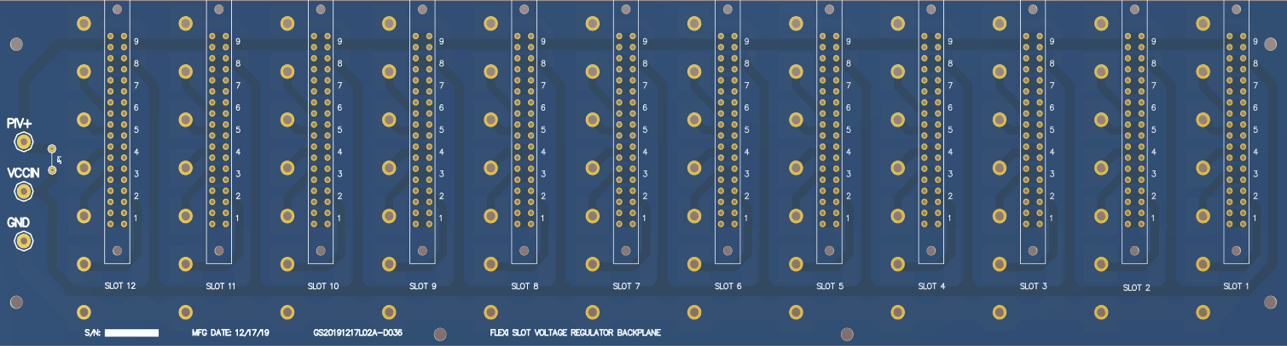

Backplane Board
  • Reliability Test Board
  • Mounting Card
  • Device Under Test Card
  • Hand Test Board
  • Gold Finger PCB
  • Multilayer PCB
  • Quick Turn PCB
