IC Testing: Reliable Signal Integrity with DaVinci Micro

Explore Smiths Interconnect Products

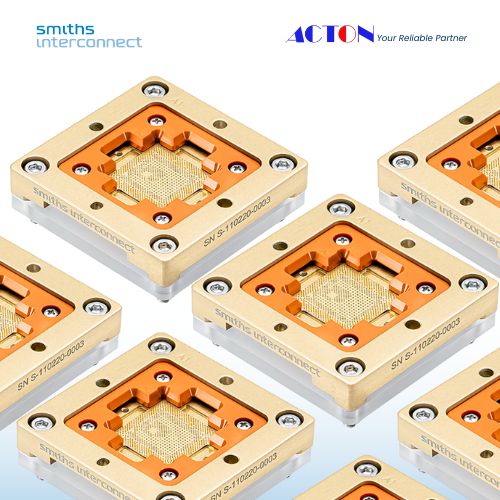

Da Vinci Micro is an innovative test socket optimizes testing processes, improves accuracy, and minimizes downtime. It validates, analyzes failures, and ensures reliable results for testing and reliability assessments.

In semiconductor testing, reliable signal integrity is critical. As an engineer, you must ensure precision in IC testing despite the constant challenges. That’s why the DaVinci Micro Test Socket from Smiths Interconnect addresses signal degradation issues directly.

Da Vinci Micro is an innovative test socket optimizes testing processes, improves accuracy, and minimizes downtime. It validates, analyzes failures, and ensures reliable results for testing and reliability assessments. See how the DaVinci Micro can strengthen your IC testing processes and protect your reputation.

IC Testing Challenges: Signal Integrity in High-Speed Applications

The Shrinking Pitches and Rising Speeds

  • As integrated circuits (ICs) evolve:
  • Pitches shrink, raising signal density
  • Functional speeds surge, increasing the risk of crosstalk and noise
  • Signal degradation can lead to inaccurate test results, reduced yield, and higher costs

The Impact of Crosstalk and Noise

Crosstalk and noise are critical issues in high-speed applications, often causing reflections and impedance mismatches. These unwanted artifacts disrupt the consistency of signal travel time from source to destination, potentially escalating bit error rates.

Da Vinci Micro Test Socket has fully shielded signal path that ensures reliable signal integrity and suppresses cross-talk, delivering immediate yield improvements over other solutions.

Strategies for Maintaining Signal Integrity

Therefore, high-speed design techniques aim to counteract these issues. Reducing artifacts helps test engineers ensure reliable IC testing with accurate and efficient results.

Click Here To Learn More About the Future of Burn In Testing

The DaVinci Micro Test Socket: Designed for IC Testing

Precision in High-Speed Testing

The DaVinci Micro Test Socket is designed to meet the demands of high-speed, fine-pitch IC testing. Importantly, its fully shielded signal path ensures reliable signal integrity and suppresses cross-talk, delivering immediate yield improvements over other solutions. This makes it an essential tool for engineers focused on precision.

Tailored for All Purposes

Moreover, the DaVinci Micro adapts to manual, bench, or high-volume production tests. It supports multiple IC packages—BGA, LGA, and QFN—and its tri-temp socket design ensures reliable performance across a broad temperature range, making it ideal for IC testing.

The DaVinci Micro Test Socket is designed to meet the demands of high-speed, fine-pitch IC testing

How DaVinci Micro Improves Signal Integrity in IC Testing

DaVinci Micro Test Socket offers a superior IC testing environment with its low insertion loss and high reliability. Short signal path of 2.85 mm Impedance tuning (40, 45, 50 Ohm) for optimized signal integrity Consistent, stable contact resistance of 120 mΩ Effective noise suppression for clearer signal transmission

Reducing Crosstalk for Reliable Results

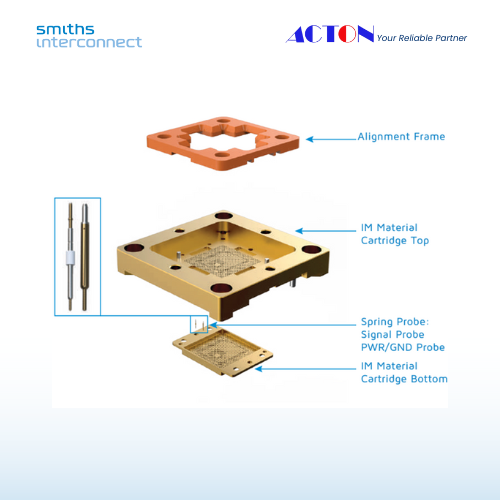

The DaVinci Micro Test Socket uses a shielded coaxial design to minimize crosstalk, reducing signal degradation during IC testing. It fully shields the signal path to block electromagnetic interference, ensuring more reliable and accurate test results.

Enhanced Performance Features

This socket offers a superior testing environment with its low insertion loss and high reliability.

  • Short signal path of 2.85 mm
  • Impedance tuning (40, 45, 50 Ohm) for optimized signal integrity
  • Consistent, stable contact resistance of 120 mΩ
  • Effective noise suppression for clearer signal transmission

Noise Reduction and Consistency

Additionally, the DaVinci Micro suppresses noise to reduce pin-to-pin interference and cross-talk, ensuring clearer signal transmission. Its consistent 120 mΩ contact resistance boosts reliability, making it ideal for engineers focused on maintaining high-quality signal integrity in IC testing.

services

Acton Technology: Enabling Reliable High-Speed Semiconductor Testing

Unmatched Quality and Support

Partner with Acton Technology to get the DaVinci Micro Test Socket and enhance your semiconductor testing with dependable signal integrity. As an official supplier, Acton Technology guarantees authentic products, delivering all the advanced features of the DaVinci Micro.

Tailored Solutions for Your Needs

IC testing is complex—but Acton Technology is here to help. We focus on your specific signal integrity challenges and deliver tailored solutions to match your testing needs. With the DaVinci Micro Test Socket from Smiths Interconnect, we help ensure your processes stay efficient and accurate.

Expert Consultation

Contact us at contact@acton-tech.com to see how the DaVinci Micro can boost your testing operations. Our experts will guide you on advanced features like cross-talk suppression and impedance tuning. Whether you’re validating, analyzing failures, or running production tests, we’re ready to help you improve signal integrity.
